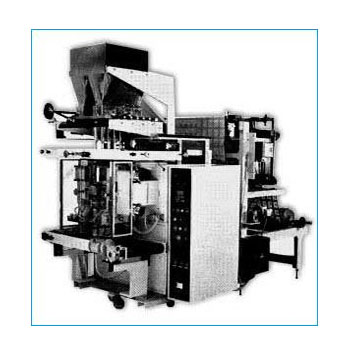

Multi Track Pouch Packing Machine

We are engaged in offering a wide range of Multitrack Powder Filling Machine with the following specifications

Technical Specifications
  1. Products: Panmasala, Tobacco, Jaljira, coffee Powder, Detergents
  2. Quantity to be packed: 1 gm - 200 gm
  3. No. Of Tracks: 4 -10 tracks (Depends upon pouch width)
  4. Machine Speed: 65 -70 Pouch / Min. / Track
  5. Temperature Controller: 400 -800 mm
  6. Machine Control PLC (Programmable Logic Control) Based
  7. Filling System: Slide Filler
  8. Roll Diameter: 400 -800 mm
  9. Contact Parts: Food Grand Stainless Steel SS 316 / SS 304
  10. Pouch Length / Type: Programmable / Four Side Sealing (With / Without Gussets)
  11. Laminate Unwinding System: Servo Based / Electromagnetic clutch and break
  12. Web Controller: Electronic / Pneumatic Hydraulic Web Edge Controller
  13. Compressed Air requirement: 2 CFM @ 6 Bar
  14. Electric Supply: 440 V, Three Phase, 50 Hz
  15. Power consumption: 5 -9.5 kW
  16. Machine Dimension & Weight: L (4000) x W (1600) x H (2750) mm , 1200- 2100 KG
  17. Optional Attachments: Pneumatic Coding Device, Collating System, Notching.
